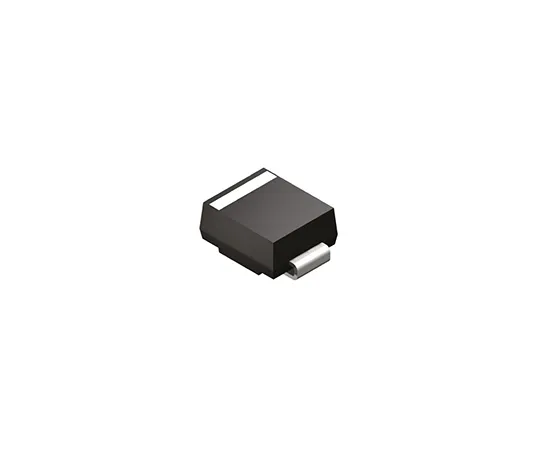

63-5079-59 Littelf*** SMBJ12A, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA SMBJ12A
Product Description
Product Model: 63-5079-59Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5079-59
Product Brand: Littelfuse
Features
- TVS Diodes SMT Unidirectional 600W, SMBJ Series, Littelf***
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Maximum Clamping Voltage : 19.9V
- Minimum Breakdown Voltage : 13.3V
- Mounting Type : Surface Mount
- Package Type : DO-214AA (SMB)
- Maximum Reverse Stand-off Voltage : 12V
- Pin Count : 2
- Peak Pulse Power Dissipation : 600W
- Maximum Peak Pulse Current : 30.2A
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -65 °C
- Maximum Operating Temperature : +150 °C
- Width : 3.94mm
- CODE No.:764-5574
