Features

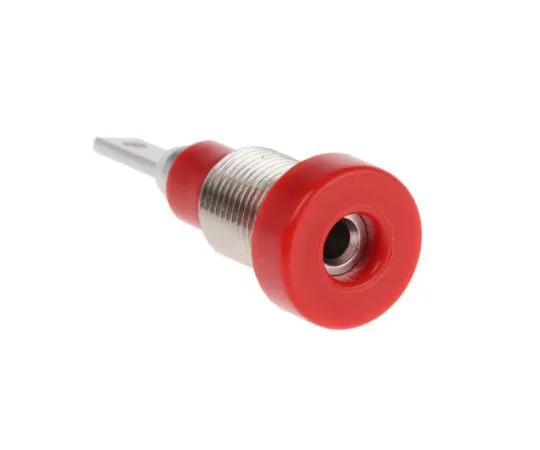

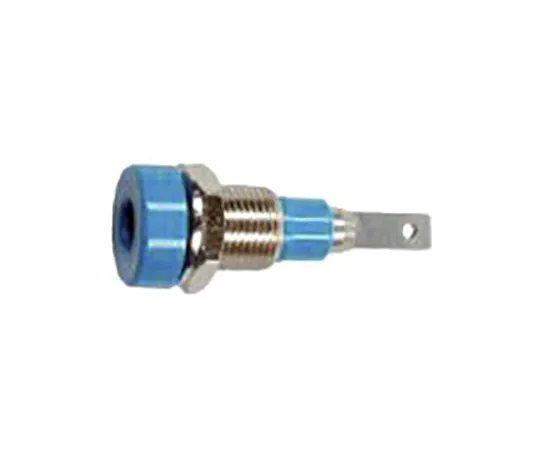

• Suitable for *** with the SLS205-L range of multilam test lead plugs see < 763-2897') 763-2897/ and range. Multi-Contact LB-12R 2mm Rigid Panel Mount Socket. Multi-Contact LB-12R series 2 mm panel mount socket connectors feature a rigid socket machined from brass, M6x0.5 thread for mounting into pre-drilled holes and has a flat 2.8 x 0.8 mm tab. The LB-12R range of rigid panel mount sockets is for *** with the SLS205-L range of multilam plug connectors, this combination offers secure and reliable repeat connectivity for your desired application. Supplied complete with washer and locknut, overall diameter of the plug entry point is 8.5mm diameter. Insulated 2mm rigid socket Optalloy® finish Flat connecting tab (2.8mm x 0.8mm) Supplied with fixings Can be screwed into pre-drilled panels Rated up to 30Vac / 60Vdc at 10A Compatible with SLS205-L 2mm plug
