Features

• Temporary states are written in parentheses, such as on - (on).

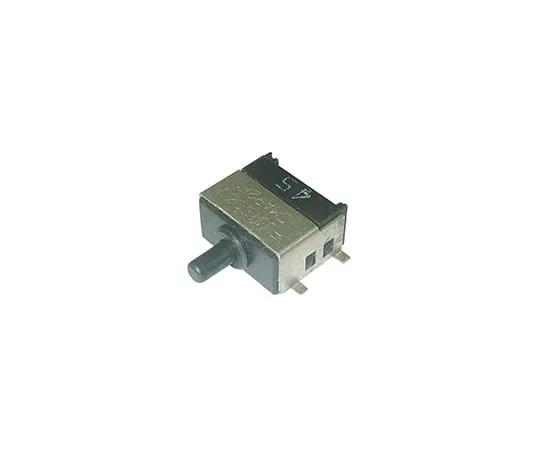

• Fujisoku Ultra Mini SMT and THT push-button switches – CFPA, SMAP; FP Series
• The 1-pole/2-pole switches belonging to Fujisok's CFPA, SMAP, and FP series are ultra-miniature PCB mounted push-button switches with "on" momentary switching operation.
• All series switches are available in SMT (CFPA and SMAP switches) or THT packages (FP switches) with straight or light angle terminals. Each series of switches also features an immersion washable structure and a twin contact clip mechanism that provides long-term stability and high reliability.
• CFPA and SMAP series surface-mounted push-button switches are reflow-solderable and have non-short contacts. On the other hand, the through-hole type FP series features an indep***ent detent mechanism with a soft click during operation.
• Available in white, red or black ABS 4mm actuator caps for CFPA, SMAP and FP push-button switches. Part number; 223 008 223 008,; 223-014 223-014,; Refer to 223-020 223-020.
• Maximum switch rating: 0.4 VA (maximum 28 V dc), Minimum rating: 1 μA @ 20 mV dc Combination of SMT or THT option and straight or light angle terminals Immersion cleaning Gold plated contacts Insulation resistance: 500 MΩ or more Insulation resistance: 250 V ac, 1 minute (Part number; 762-5918 762-5918 is 500 V ac, 1 minute) Electrical life: 10,000 operations (Part No.; 762-5918 762-5918 is 50,000 operations)
