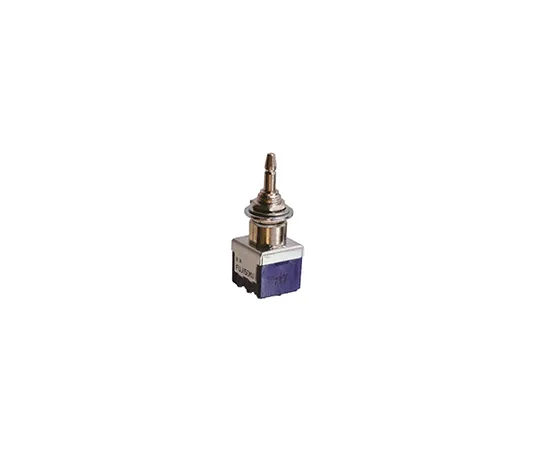

63-5074-93 Pushbutton Switch Bipolar Double Throw (DPDT) 3 A @ 250 V ac, 6 A @ 125 V ac 8N2022-Z
Electronic/Electrical Parts and Controll Equipments

63-5074-93 Pushbutton Switch Bipolar Double Throw (DPDT) 3 A @ 250 V ac, 6 A @ 125 V ac 8N2022-Z

model: 63-5074-93
brand: Copal Electronics

Product Description

Product Model: 63-5074-93Product Brand: Copal Electroni […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5074-93
Product Brand: Copal Electronics

Features

  • UL, CSA
  • This switch is completed by combining the switch body and the button actuator.
  • For momentary switches, transient states are written in parentheses, such as On- (On).
  • The 8N switch comes with two hex nuts, one lock washer, and one lock ring.
  • The 8P switch comes with one hex nut, one lock washer and one O-ring.
  • If you are using a locking ring with an 8N switch, refer to the data sheet for more information about panel cropping.
  • Fujisoku Push Button Switch – 8N and 8P Series
  • The push-button switches of Fujisoku 8N and Waterproof 8P series are equipped with SPDT or DPDT contact configuration, momentary or alternate function, substrate or solder terminal.
  • 8N and waterproof 8P push-button switches have a terminal-to-ground insulation distance of more than 4 mm, a contact resistance of less than 10 MΩ, and an insulation resistance of more than 1000 MΩ.
  • Epoxy sealed flux-resistant structure and UL94V-0 compliant self-extinguishing body material with excellent arc resistance.
  • To secure the switch to the panel, simply select the color and size of the actuator buttons to match the panel design.
  • The actuator button can be easily snapped to the switch shaft from the front of the panel, or removed and replaced with a different color or size.
  • The buttons are available in white, red or black, and in sizes 8 mm, 10 mm or 15 mm in diameter.
  • The color and size of the button actuator can be selected according to the applicationMaximum switch rating: 6 A @ 125 V ac, 3 A @ 250 V ac Waterproof (8P series only) Solder or substrate terminal Maximum contact resistance: 10 MΩ Insulation strength: 1500 V ac, 1 minute Insulation resistance: 1000 MΩ or more Electrical life: 25,000 times for momentary switch, 40,000 times for alternate switch Self-extinguishing, UL94V-0 Compliant Operating temperature range: -20→+85°C

Spec

  • Number of Pieces: 1
  • switch behavior: momentary
  • Contact Configuration: Bipolar Double Throw (DPDT)
  • Mounting Type: PCB
  • Panel Cutout Diameter: 6.4 (w/o locking ring) mm
  • Contact current rating: 3 A @ 250 V ac, 6 A @ 125 V ac
  • actuator types: buttons
  • RoHS Compliance Status: Compliance
  • Securities Code: 762-4953
