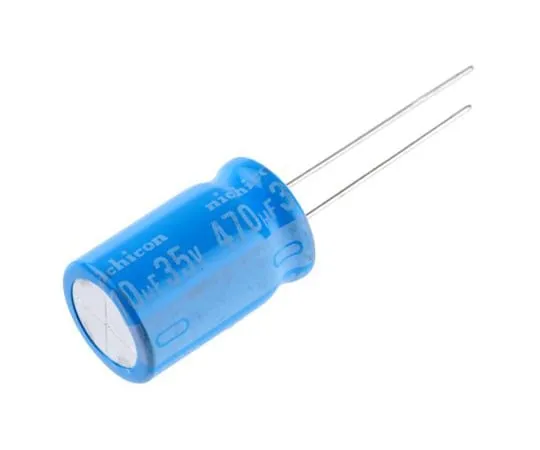

63-5074-02 Nichicon 470μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 20mm +125°C 12.5mm 5mm UBT1V471MHD8
Product Description
Product Model: 63-5074-02Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5074-02
Product Brand: NICHICON
Features
- BT Series High Temperature (PET Sleeve). Nichicon BT Series Aluminium Electrolytic Capacitors are high reliability, low impedance and a miniature size that offer a 10000-hour load life. The BT series features a high temperature range, a wide rated voltage range, and high ripple current. Suitable for automobile electronics where heavy-duty services are indispensable. Features ; Benefits:. High reliability High ripple current Long life up to 10,000 hours
Spec
- Quantity：1bag(2pieces)
- Capacitance : 470µF
- Voltage : 35V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 12.5 x 20mm
- Height : 20mm
- Minimum Operating Temperature : -40°C
- Diameter : 12.5mm
- Maximum Operating Temperature : +125°C
- Lifetime : 10000h
- Series : BT
- Equivalent Series Resistance : 58mΩ
- CODE No.:762-1711
