Features

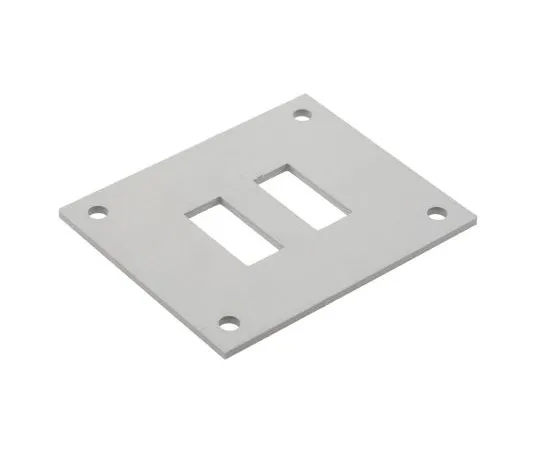

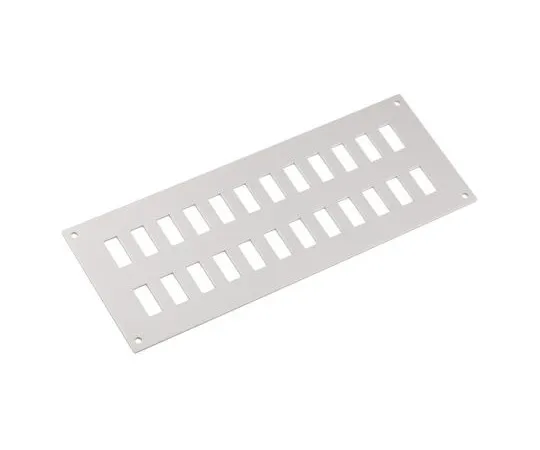

• Anodised Aluminium Faceplates. Faceplates suitable for mounting thermocouple panel sockets. Height: Standard 66mm, Miniature 45mm Formula for Length: Standard (19 x n) + 31mm, Miniature (15 x n) + 25mm, n = number of ways Fixing holes 4 x 3.25mm diameter, 5mm in from each edge Anodised Aluminium Faceplates Suitable for miniature ; standard fascia panel mounting thermocouple sockets Etch matt ; satin anodised finish Miniature size panels available in 2, 4, 6, 12, 16, 20 ; 24 way Standard size panels available in 1, 2, 3, 4 ; 6 way 1 to 12 way panels in single row (as shown) 16, 20 ; 24 way panels are in two rows i.e. 16 way = 2 rows of eight, 20 way = 2 rows of 10, 24 way = 2 rows of 12 Both miniature ; standard panels have 4 x 3.2mm fixing holes, positioned 5mm centre line from corners edges
