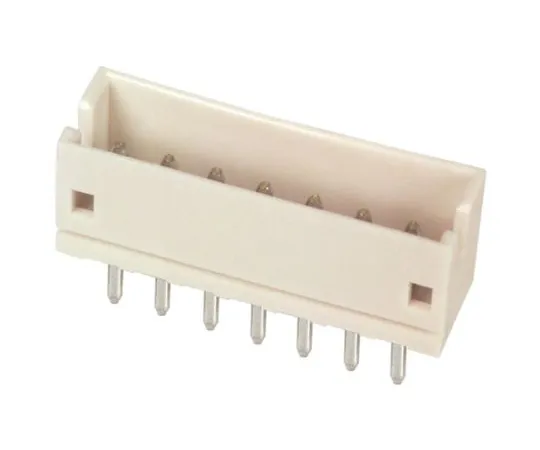

63-5073-29 JST ZH, 7 Way, 1 Row, Top Entry PCB Header B7B-ZR (LF)(SN)
Product Description
Product Model: 63-5073-29Product Brand: JST Features Re […]
Contact Us
Product Details
Product Model: 63-5073-29
Product Brand: JST
Features
- Recognized E 60389, Certified LR20812, R9351092
- Connector for board ZH pin with base
- The JST ZH series connectors are very small with a mounting height of 5.6 mm and a thickness of 3.5 mm
- Contact retention lances on the housingmAke insertion easier, while the simple at the centre of the contact ensures reliable contact with the post
- Features; Benefits
- Compact, low profile design
- Housing lances
- Reliable contact construction
- Compatible with the ZR insulation displacement connectors
Spec
- Quantity：1bag(5pieces)
- Series : ZH
- Pitch : 1.5mm
- Number of Contacts : 7
- Number of Rows : 1
- Body Orientation : Top Entry
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Type : Wire to Board
- Voltage Rating : 50 V ac/dc
- CODE No.:762-0828
