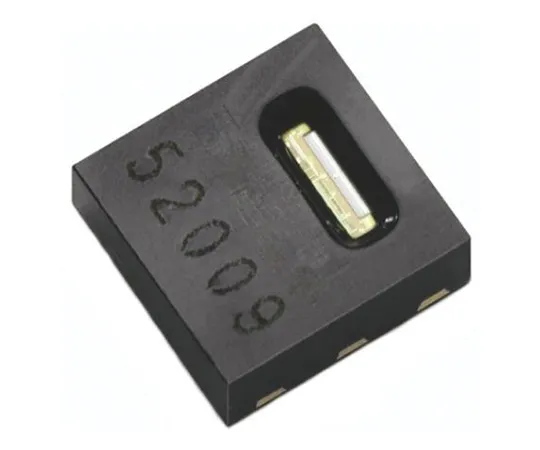

63-5065-25 Sensirion STS21, Digital Temperature Sensor -40 → +125 °C ±0.2°C Serial-I2C, 6-Pin DFN STS21
Product Description
Product Model: 63-5065-25Product Brand: Sensirion Featu […]
Contact Us
Product Details
Product Model: 63-5065-25
Product Brand: Sensirion
Features
- STS21 Temperature Sensor IC, Sensirion. The STS21 CMOSens® based temperature sensor IC ***s an I²C serial interface to communicate digital temperature readings. The STS21 also features an on-chip band gap temperature sensor, amplifier, A/D converter, OTP memory and a digital processing unit. CMOSens® technology based chips enable a sensor to be combined with both analogue and digital circuits in a compact package. Features; CMOSens® technology No calibration required I²C serial interface Reflow solderable Low power
Spec
- Quantity：1piece
- Sensor Function : Temperature
- Output Type : Digital
- Interface Type : Serial-I2C
- Accuracy : ±0.2°C
- Mounting Type : Surface Mount
- Pin Count : 6
- Minimum Operating Temperature : -80 °C
- Maximum Operating Temperature : +125 °C
- Minimum Operating Supply Voltage : 2.1 V
- Maximum Operating Supply Voltage : 3.6 V
- Package Type : DFN
- Length : 3mm
- Height : 1.1mm
- Width : 3mm
- Resolution : 11 → 14 bit
- CODE No.:755-9846
