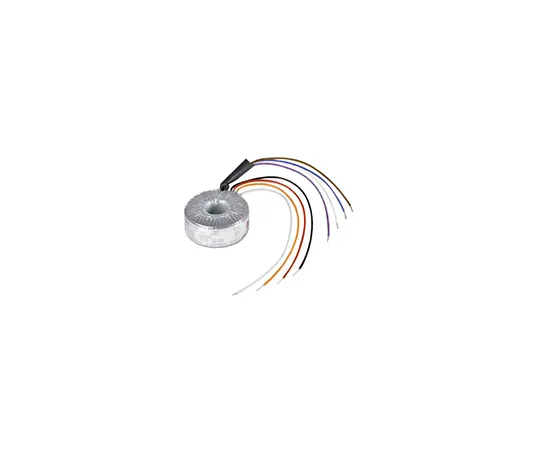

63-5057-39 2 Output Toroidal Transformer, 20VA, 2 x 15V ac RKD 20/2x15
Product Description
Product Model: 63-5057-39Product Brand: Block Features […]
Contact Us
Product Details
Product Model: 63-5057-39
Product Brand: Block
Features
- Mounting Kit. RKD Toroidal Transformers dual 115Vac input. High quality open style toroidal transformers with dual 115Vac 50/60Hz primary and secondary windings which may be connected in series or parallel or ***d indep***ently. Small size and low weight compared with traditional stacked lamination types Extremely low level of radiated magnetic field Very low induced noise (hum) Very low iron loss Supplied with mounting kit Insulation Class B
Spec
- Quantity：1piece
- Primary Voltage Rating : 115 V ac, 230 V ac
- Secondary Voltage Rating : 2 x 15V ac
- Power Rating : 20VA
- Number of Outputs : 2
- Weight : 350g
- Diameter : 61mm
- Minimum Operating Frequency : 50Hz
- Maximum Operating Frequency : 60Hz
- Termination Type : Leads
- Maximum Temperature : +40°C
- CODE No.:752-9296
