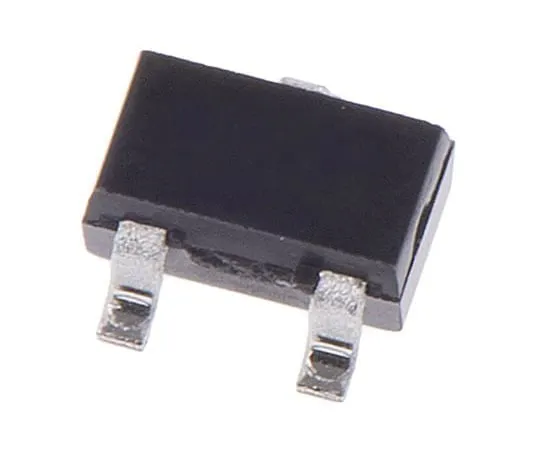

63-5057-10 Infineon, BCR133WH6327XTSA1 NPN Digital Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 3-Pin SOT-323 (SC-70) BCR133WH6327XTSA1
Product Description
Product Model: 63-5057-10Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-5057-10
Product Brand: Infineon
Features
- Dual Resistor Digital Transistors, Infineon. A range of bipolar junction transistors from Infineon equipped with integrated resistors allowing the devices to be directly driven from digital sources without additional components. Dual resistor devices have a series input resistor plus a resistor connected between the transistor base and emitter.
Spec
- Quantity：1bag(100pieces)
- Transistor Type : NPN
- Number of Elements per Chip : 1
- Maximum Continuous Collector Current : 100 mA
- Maximum Collector Emitter Voltage : 50 V
- Typical Input Resistor : 10 kΩ
- Mounting Type : Surface Mount
- Package Type : SOT-323 (SC-70)
- Pin Count : 3
- Minimum DC Current Gain : 30
- Maximum Power Dissipation : 250 mW
- Maximum Collector Emitter Saturation Voltage : 0.3 V
- Typical Resistor Ratio : 1
- Maximum Operating Temperature : +150 °C
- CODE No.:752-7993
