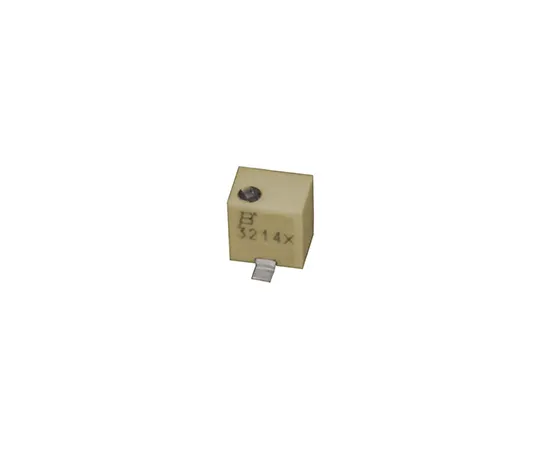

63-5048-13 10kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Bourns 3214 Series 3214X-1-103E
Product Description
Product Model: 63-5048-13Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5048-13
Product Brand: Bourns
Features
- 5-Turn 250mW 4mm Sealed 3214X Series. Bourns® 3214X Series 4mm Sealed 5-Turn Trimpot® Trimming Potentiometer. Miniature (nominal 4mm square case size) Excellent mounting efficiency Suitable for flow/reflow soldering/hand solder Straight slot top adjuster Meets standard EIA and EIAJ footprint
Spec
- Quantity：1piece
- Maximum Resistance : 10kΩ
- Mounting Type : Surface Mount
- Number of Turns : 5
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : 3214
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 3.5mm
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +150°C
- CODE No.:743-2296
