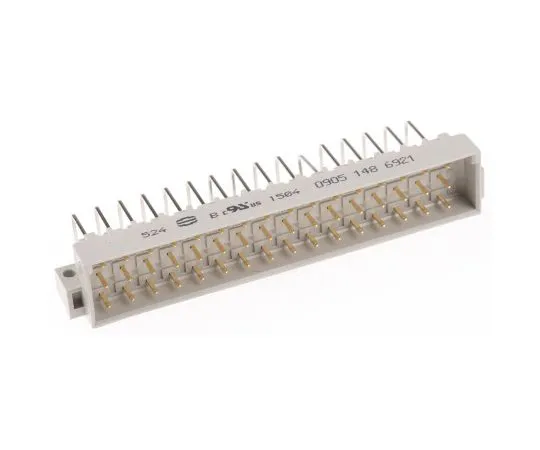

63-5044-33 HARTING 09 05 Series 48 Way 5.08mm Pitch, Type E Class C2, 3 Row, Right Angle DIN 41612 Connector, Plug 9051486921
Product Description
Product Model: 63-5044-33Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-5044-33
Product Brand: HARTING
Features
- Harting DIN 41612 Type E Backplane Power Connectors. Harting DIN 41612 type E backplane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections. Stock numbers ; 757-7976 757-7976 and ; 757-7960 757-7960 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2. Operating temp -55 to +125 °C 6A max per contact Contact resistance up to 15mΩ Thermoplastic resin - glass fibre filled Copper alloy contacts
Spec
- Quantity：1piece
- Number of Contacts : 48
- G***er : Male
- Number of Rows : 3
- Body Orientation : Right Angle
- Termination Method : Solder
- Row Loading : a/c/e
- Type : E
- Pitch : 5.08mm
- Contact Plating : Gold over Nickel
- Class Rating : C2
- Current Rating : 6A
- Contact Material : Copper Alloy
- Maximum Contact Resistance : 15mΩ
- Minimum Operating Temperature : -55°C
- CODE No.:740-6947
