Electronic/Electrical Parts and Controll Equipments

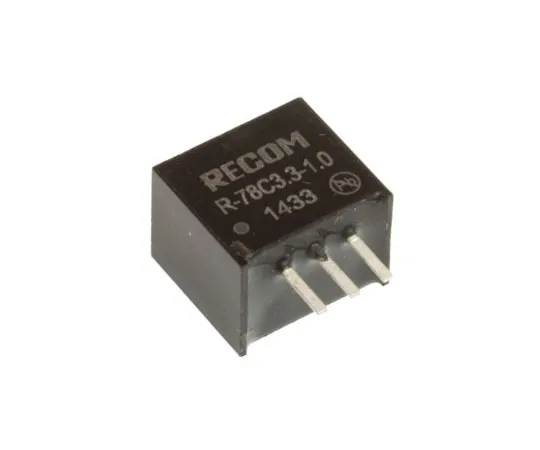

63-5043-89 Recom Switching Regulator, 7 → 42V dc Input, 3.3V dc Output, 1A R-78C3.3-1.0
Product Description
Product Model: 63-5043-89Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-5043-89
Product Brand: Recom
Features
- General safety: EN 60950-1:2006 + A11:2009 + A1:2010 Standby power: EN62301:2005. MTBF to MIL-HDBK 217F Power derates above 68°C. 3. R-78Cxx 1.0L Series Single Output DC/DC Converter. R-78C 1.0 1A SIP3 single output DC to DC converter which is pin compatible with LM78XX linear regulators. The high efficiency of these SIP3 single output DC to DC switching regulators means that there is no need for heatsinks as very little energy is wasted. High efficiency of 96% Low profile design: L11.6mm x W8.5mm x H10.4 mm Wide input voltage range Short circuit protection and thermal shutdown Low ripple and noise EMC compliance to EN55022 Class B
Spec
- Quantity：1piece
- Input Voltage : 7 → 42V dc
- Output Voltage : 3.3V dc
- Number of Outputs : 1
- Output Current : 1A
- Power Rating : 3.3W
- Mounting Type : Through Hole
- Package : SIP 3
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 79%
- MTBF : 3880000h
- Load Regulation : ±0.4%
- Line Regulation : ±0.2%
- Ripple And Noise : 100mV Pk-Pk
- Depth : 10.4mm
- CODE No.:739-8297
