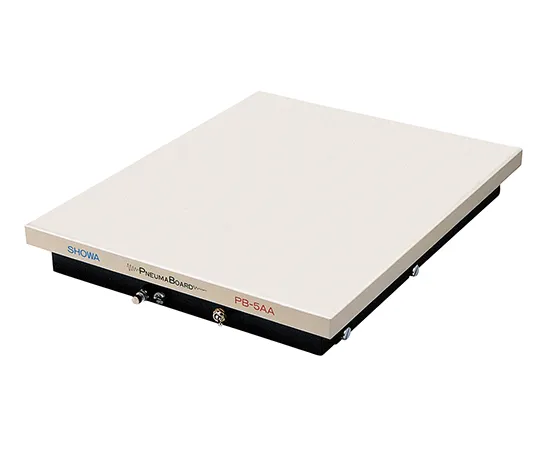

62-9897-68 Desktop Vibration Isolation Table with Built-in Automatic Level Adjuster (1000 x 700) PB-5AA-1070
Product Description
Product Model: 62-9897-68Product Brand: CHUO PRECISION […]
Contact Us
Product Details
Product Model: 62-9897-68
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- It is a simple vibration absorber that can be ***d as it is on an office desk or workbench.
- The built-in small automatic level regulator automatically adjusts the air spring pressure according to the load on the spring to keep the level level if there is an air source.
- Lightweight, compact and thin type for easy carrying.
- By turning on and off the pin lever valve, air can be supplied and exhausted in about 2 seconds to eliminate fluctuation during adjustment of mounted equipment.
- φ6mm x 3 m urethane tube and fitting (RT1/8 male screw) are included for connection to air source.
Spec
- Surface Size: Width 1,000 mm x 700 mm
- Height: 64 mm (when levitated)
- Mass: 54 kg
- Loadable mass: 120 kg
- Natural Frequency: Horizontal/Approx. 2.5 Hz, Vertical/Approx. 2.5 Hz
- Top: Iron Plate (SPCC)
- Separate air source required
- Application examples: optical microscopes, roughness meters, measuring instruments, weighing instruments, etc.
