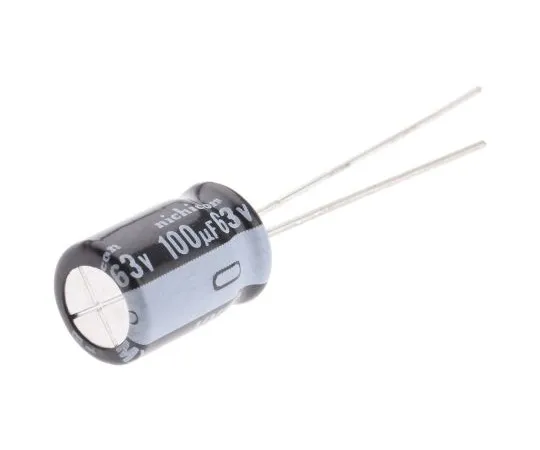

63-5043-32 Nichicon 100μF 63V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +105°C 8mm 3.5mm UVY1J101MPD
Product Description
Product Model: 63-5043-32Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5043-32
Product Brand: NICHICON
Features
- Nichicon VY Series General Purpose Electrolytic Capacitors. Nichicon VY series aluminium electrolytic capacitors are miniature sized, low impedance, high reliability capacitors for switching power supplies. Features ; Benefits:. Lifetime rating of 1000 hours @ 105°C. High ripple current and temperature range
Spec
- Quantity：1bag(10pieces)
- Capacitance : 100µF
- Voltage : 63V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 8 (Dia.) x 11.5mm
- Height : 11.5mm
- Minimum Operating Temperature : -55°C
- Diameter : 8mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 3.5mm
- Series : VY
- Leakage Current : 189 μA
- CODE No.:739-5368
