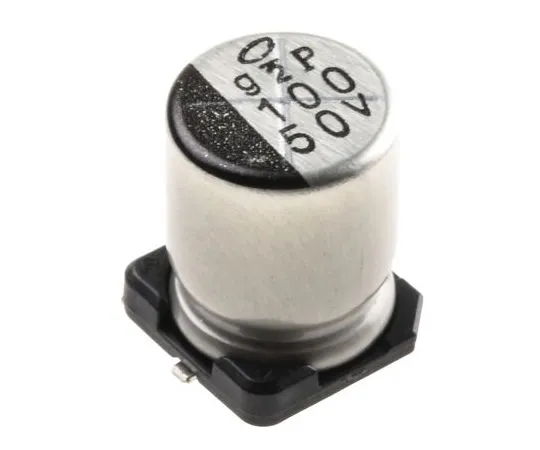

63-5041-71 Nichicon 100μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10mm +105°C 8mm UWT1H101MNL1GS
Product Description
Product Model: 63-5041-71Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5041-71
Product Brand: NICHICON
Features
- WT Series. WT Aluminium Electrolytic Capacitor series. Chip type operating over wide temperature range of to –55 to +105°C. Rated Voltage Range of 4 to 50V Rated Capacitance Range of 0.1 to 1500μF Designed for surface mounting on high density PC board Suitable for automatic mounting machine using carrier tape
Spec
- Quantity：1bag(10pieces)
- Capacitance : 100µF
- Voltage : 50V dc
- Mounting Type : Surface Mount
- Technology : Electrolytic
- Dimensions : 8 (Dia.) x 10mm
- Height : 10mm
- Minimum Operating Temperature : -55°C
- Diameter : 8mm
- Maximum Operating Temperature : +105°C
- Lifetime : 1000h
- Series : WT
- Tolerance : ±20%
- CODE No.:739-2870
