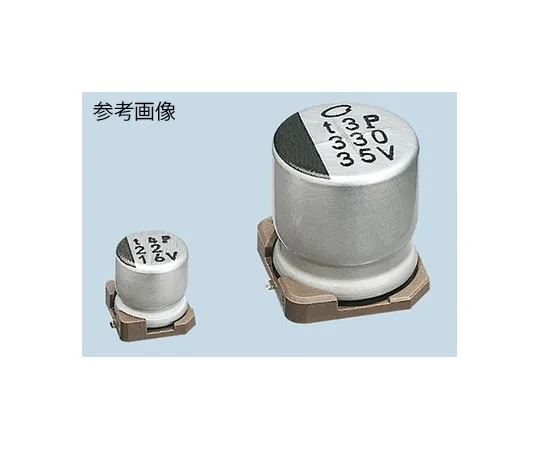

63-5041-68 Nichicon 22μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 5.4mm +105°C 6.3mm 2.2mm UWT1V220MCL1GB
Product Description
Product Model: 63-5041-68Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5041-68
Product Brand: NICHICON
Features
- WT Series. WT Aluminium Electrolytic Capacitor series. Chip type operating over wide temperature range of to –55 to +105°C. Rated Voltage Range of 4 to 50V Rated Capacitance Range of 0.1 to 1500μF Designed for surface mounting on high density PC board Suitable for automatic mounting machine using carrier tape
Spec
- Quantity：1bag(25pieces)
- Capacitance : 22µF
- Voltage : 35V dc
- Mounting Type : Surface Mount
- Technology : Electrolytic
- Dimensions : 6.3 (Dia.) x 5.4mm
- Height : 5.4mm
- Minimum Operating Temperature : -55°C
- Diameter : 6.3mm
- Maximum Operating Temperature : +105°C
- Lifetime : 1000h
- Series : WT
- Leakage Current : 7.7 μA
- CODE No.:739-2848
