Electronic/Electrical Parts and Controll Equipments

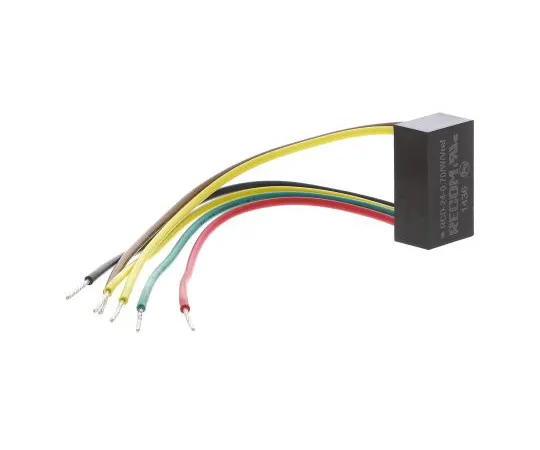

63-5039-36 Recom RCD-24-0.70/W/Vref, Constant Current 1-10 V, PWM LED Driver 24.5W 2 → 32V 0 → 700mA RCD-24-0.70/W/Vref
Product Description
Product Model: 63-5039-36Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-5039-36
Product Brand: Recom
Features
- EN 609501-1. 5. Constant Current LED Driver, Wired with Vref - RCD-24 Series. IP67 rated wired constant current LED drivers for driving high power white LEDs. These six wire, constant current LED drivers have analogue voltage dimming and built-in reference output voltage to power sensors or for easy analogue dimming. Wide input and output voltage range High operating operating temperature range Analogue voltage dimming Built in reference output voltage IP67 ingress protection Short circuit and overtemperature protection High efficiency of 96% EMC to EN55022 Class B
Spec
- Quantity：1piece
- Input Voltage : 4.5 → 36 V dc
- Output Voltage : 2 → 32V
- Operation : Constant Current
- Output Current : 0 → 700mA
- Maximum Output Power : 24.5W
- Dimming Operation : 1-10 V, PWM
- AC or DC Input Voltage : dc
- IP Rating : IP67
- Voltage Rating : 4.5 → 36V dc
- CODE No.:738-5724
