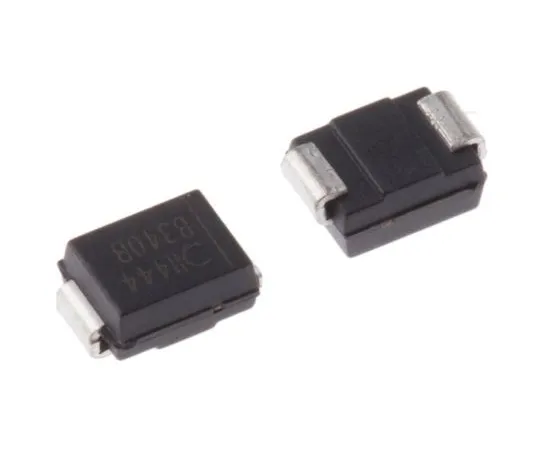

63-5039-05 Diodes Inc 40V 3A, Schottky Diode, 2-Pin DO-214AA B340B-13-F B340B-13-F
Product Description
Product Model: 63-5039-05Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-5039-05
Product Brand: DiodesZetex
Features
- Schottky Barrier Diodes, 2A to 9A, Diodes Inc. Super Barrier Rectifiers (SBR) diodes are the next generation of rectifiers. The two terminal device has a lower forward voltage (VF) than comparable Schottky diodes while possessing the thermal stability and high reliability characteristics of PN epitaxial diodes.
Spec
- Quantity：1bag(25pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 40V
- Mounting Type : Surface Mount
- Package Type : DO-214AA (SMB)
- Diode Technology : Schottky
- Pin Count : 2
- Maximum Forward Voltage Drop : 500mV
- Peak Non-Repetitive Forward Surge Current : 100A
- CODE No.:738-4787
