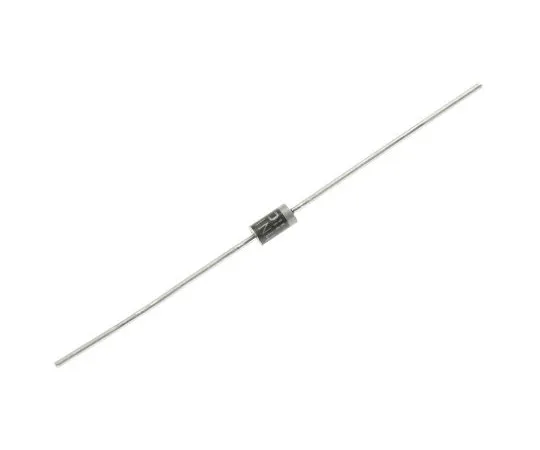

63-5038-90 Diodes Inc 1000V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4007-T 1N4007-T
Product Description
Product Model: 63-5038-90Product Brand: DiodesZetex Fea […]
Contact Us
Product Details
Product Model: 63-5038-90
Product Brand: DiodesZetex
Features
- Diodes Inc 1N4001-1N4007 Rectifiers. Benefits:. Diff***d Junction High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 30A Peak Low Reverse Leakage Current Lead Free Finish, RoHS Compliant. Features:. Case: DO-41 Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Polarity: Cathode Band Marking: Type Number Moisture Sensitivity: Level 1 per J-STD-020D Mounting Position: Any Terminals: Finish - Bright Tin. Plated Leads Solderable per MIL-STD-202, Method 208
Spec
- Quantity：1bag(200pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 1000V
- Mounting Type : Through Hole
- Package Type : DO-41
- Diode Type : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1V
- Diameter : 2.7mm
- Peak Non-Repetitive Forward Surge Current : 30A
- CODE No.:738-4724
