63-5038-70 Littelf*** 80mA FF Non-Resettable Surface Mount F***, 125V 0451.080MRL
Product Description
Product Model: 63-5038-70Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5038-70
Product Brand: Littelfuse
Features

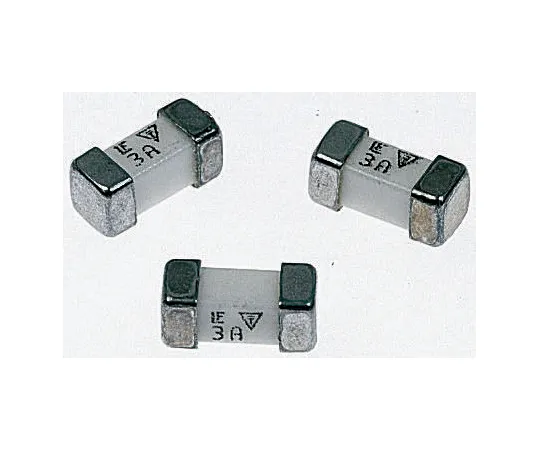

- CSA, UL. Littelf*** 451 Series NANO ;sup>2 ;/sup> Surface Mount F***s. Littelf*** 451 series of NANO ;sup>2 ;/sup> surface mount f***s are very small wire-in-air (WIA) square shape surface mount devices which are suitable for a variety of secondary side circuit over-current protection applications. Very fast acting Small size Low temperature de-rating
Spec
- Quantity：1bag(10pieces)
- Current Rating : 80mA
- Voltage Rating : 125V
- Length : 6.1mm
- Width : 2.69mm
- Height : 2.69mm
- Dimensions : 6.1 x 2.69 x 2.69mm
- F*** Speed : FF
- Body Material : Ceramic
- Breaking Capacity at Maximum Voltage Rating : 300 A @ 32 V dc, 50 A @ 125 V ac/dc
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Terminal Material : Gold Plated, Silver Plated, SnPb Plated
- Operating Temperature Range : -55 to +125 °C
- CODE No.:738-2964
