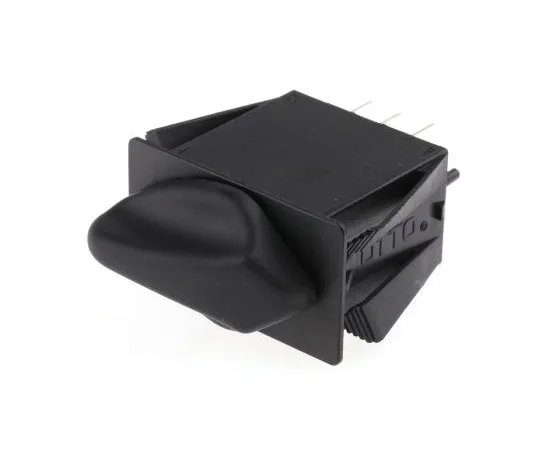

63-5037-48 Otto, 3 Position DPDT Rotary Switch, 20 A @ 28 V dc, Tab R2AB4455NNNN
Electronic/Electrical Parts and Controll Equipments

63-5037-48 Otto, 3 Position DPDT Rotary Switch, 20 A @ 28 V dc, Tab R2AB4455NNNN

model: 63-5037-48
brand: Otto

Product Description

Product Model: 63-5037-48Product Brand: Otto Features I […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5037-48
Product Brand: Otto

Features

  • IP68 Rotary Switches, Otto R2 Series. Used in the heavy equipment, marine, process control and instrumentation markets, the Otto R2 rotary switch is an excellent replacement for rocker switches, offering improved visual indication, additional lighting options and different styling on front panels. The R2 is a sealed, lighted rotary switch which snaps into a 1.475 x 0.875" industry standard rocker switch panel cut-out. The R2 rotary switch provides up to three positions in various combinations of momentary and maintained action. It is capable of handling loads from logic level up to 20 amps resistive. Sealing is to IP68S via a shaft O-ring seal in front and a potted base in the back. The R2 offers lighting options including up to three indep***ent LED light positions which illuminate a lens on the rotary knob. Rated 16A at 110Vac and 20A at 12/28Vdc Connection via .250" fast on terminals Keyed connection pin Black soft touch selector knob (apart from stock numbers ; 294-331 294-331 and ; 294-246 294-246 which are plain black)

Spec

  • Quantity:1piece
  • Contact Configuration : DPDT
  • Contact Current Rating : 20 A @ 28 V dc
  • Number of Switch Positions : 3
  • Number of Contacts : 2
  • Voltage Rating : 110 V ac, 28 V dc
  • Depth : 1.68mm
  • Width : 0.93mm
  • Dimensions : 0.96 x 1.7 x 2.31in
  • Mounting Type : Panel Mount
  • Mounting Hole Size : 1.475 x 0.875 in
  • Terminal Type : Tab
  • Contact Material : Gold Plated Silver Alloy
  • CODE No.:737-3850
