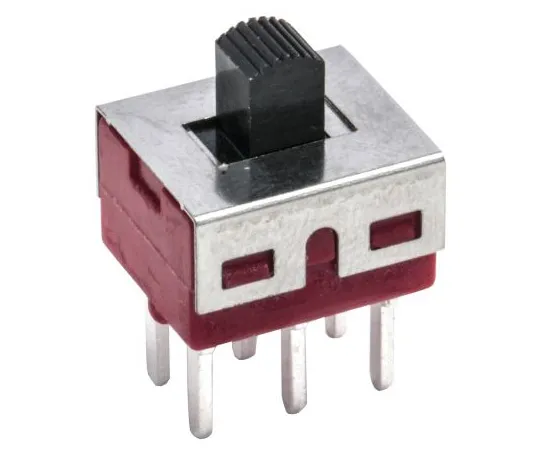

63-5036-30 PCB Slide Switch Double Pole Double Throw (DPDT) On-Off-On 5 A @ 28 V dc Top 734-7280
Product Description
Product Model: 63-5036-30Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5036-30
Product Brand: RS PRO
Features
- RS - Miniature Slide Switches. Suitable for wave soldering at 260ºC for 5 seconds Black nylon actuator, DAP case and stainless steel housing Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Mounting Type : PCB
- Switch Operation : On-Off-On
- Contact Current Rating : 5 A @ 28 V dc
- Terminal Type : Through Hole
- Actuator Type : Top
- Length : 11.43mm
- Width : 7.62mm
- Depth : 12.7mm
- Dimensions : 11.43 x 7.62 x 12.7mm
- Contact Resistance : 10mΩ
- Mechanical Life : 30000Cycles
- Operating Temperature Range : -30 → +85°C
- CODE No.:734-7280
