Electronic/Electrical Parts and Controll Equipments

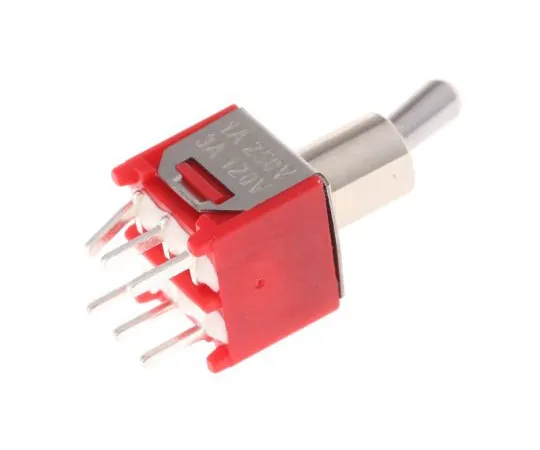

63-5036-04 RS PRO Double Pole Double Throw (DPDT) Toggle Switch, Latching, PCB 734-7182
Product Description
Product Model: 63-5036-04Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5036-04
Product Brand: RS PRO
Features
- Toggle Switches, Sub-Miniature - RS Series. RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : Latching
- Contact Current Rating : 3 A @ 120 V ac
- Mounting Type : PCB
- Terminal Type : Through Hole
- Panel Cut Out Diameter : 4.95mm
- Actuator Length : 5.33mm
- Actuator Material : Chromium Plated Brass
- Contact Resistance : 20mΩ
- Maximum Operating Temperature : +85°C
- CODE No.:734-7182
