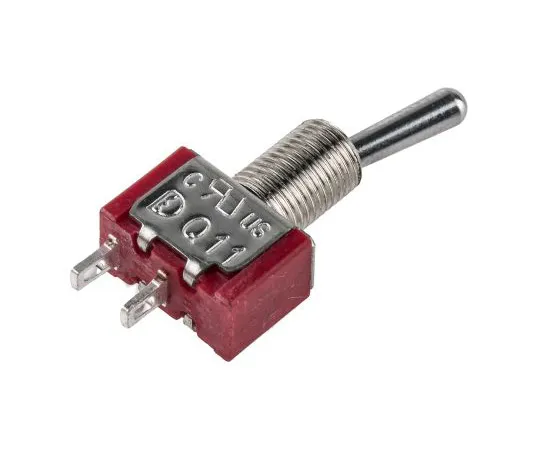

63-5035-97 RS PRO Single Pole Single Throw (SPST) Toggle Switch, Latching, Panel Mount 734-7154
Product Description
Product Model: 63-5035-97Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5035-97
Product Brand: RS PRO
Features
- Toggle Switches, Miniature - RS Series. RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.
Spec
- Quantity：1piece
- Contact Configuration : Single Pole Single Throw (SPST)
- Switch Operation : Latching
- Contact Current Rating : 5 A @ 28 V dc
- Mounting Type : Panel Mount
- Terminal Type : Solder
- Panel Cut Out Width : 6.86mm
- Panel Cut Out Height : 12.7mm
- Actuator Length : 10.4mm
- Actuator Material : Chrome Plated Brass
- Voltage Rating : 28V dc
- Contact Resistance : 10mΩ
- Standards Met : RoHS & Lead Free
- CODE No.:734-7154
