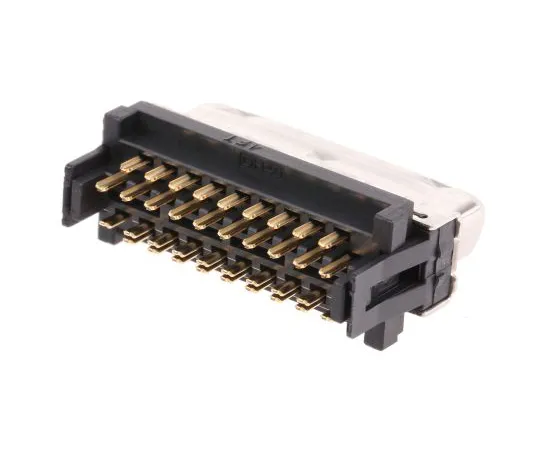

63-5026-91 Hirose DH Series, 37 Way Rectangular Connector Socket, 1mm Pitch DH40-37S
Product Description
Product Model: 63-5026-91Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-5026-91
Product Brand: Hirose
Features
- DH Series Plug Unit. These Hirose DH Series connectors are an impedance controlled interface plug connectors for high speed transmission, these interface connectors feature solder contacts and are compact in design with 1mm contact mating pitch. Features and Benefits. Current rating 0.5A Voltage rating 125 Vac Operating temperature range -25 to +85°C 1000 operating cycles
Spec
- Quantity：1piece
- Number of Contacts : 37
- G***er : Female
- Termination Type : Solder
- Number of Poles : 37
- Current Rating : 500mA
- Voltage Rating : 125 V ac
- Pitch : 1mm
- Body Orientation : Straight
- Series : DH
- Housing Material : PA
- Length : 24.8mm
- Width : 15.7mm
- Depth : 9.55mm
- Dimensions : 24.8 x 15.7 x 9.55mm
- Minimum Operating Temperature : -25°C
- CODE No.:725-5434
