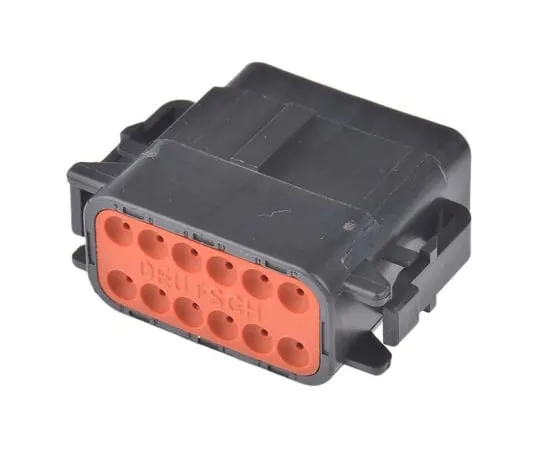

63-5025-69 Deutsch DTM Series, 2 Row 12 Way Plug Connector, with Crimp Termination Method DTM0612SB
Electronic/Electrical Parts and Controll Equipments

63-5025-69 Deutsch DTM Series, 2 Row 12 Way Plug Connector, with Crimp Termination Method DTM0612SB

model: 63-5025-69
brand: Deutsch

Product Description

Product Model: 63-5025-69Product Brand: Deutsch Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5025-69
Product Brand: Deutsch

Features

  • DTM Series Plug with B Keying. Deutsch DTM Series connectors are ideal for transport and other harsh environment signal connector applications. THey are often ***d in engine compartments and transmission tunnels. The DTM series features a smaller contact and enhanced design in comparison to the DT series connector. Features and Benefits. B keyed Connector Tactile and audible connector mating Rugged thermoplastic connector housing Hand insertable/removable contacts Operating temperature range: -55 → +125 °C Dielecric withstand voltage 1500 V ac Nickel plated copper alloy contacts (available separately) Positive contact retention Suitable for Size 20 Contacts. Available in this Range. Stock No. ; 724-2579 724-2579 is a is a B-Keyed 12 way Plug Housing for Socket Contacts Stock No. ; 724-2585 724-2585 is a is a B-Keyed 12 way Plug Housing for Socket Contacts with Boot Adaptor

Spec

  • Quantity:1piece
  • Number of Contacts : 12
  • Type : Connector
  • G***er : Male
  • Number of Rows : 2
  • Current Rating : 7.5A
  • Series : DTM
  • Colour : Black
  • Termination Method : Crimp
  • Height : 20.22mm
  • Width : 40.01mm
  • Depth : 43.69mm
  • Contact Material : Copper Alloy
  • CODE No.:724-2579
