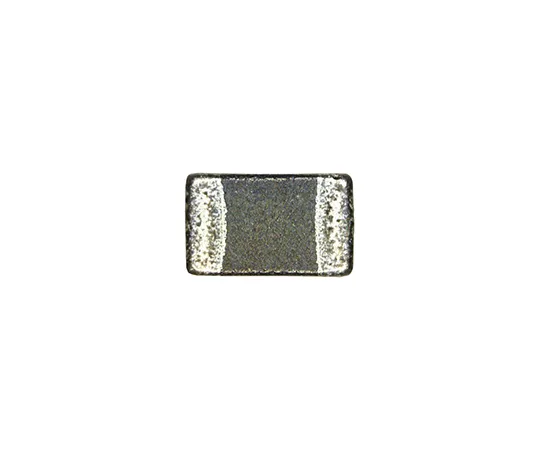

63-5024-92 Murata Ferrite Bead (Chip Ferrite Bead), 2 x 1.25 x 0.85mm (0805 (2012M)), 220Ω impedance at 100 MHz BLM21AG221SN1D
Product Description
Product Model: 63-5024-92Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-5024-92
Product Brand: Murata
Features
- SMD 0805 Ferrite Filters- BLM21A Series. BLM series ferrite beads from Murata do not require a ground connection and are ideal for *** in circuits with unstable ground lines. At noise frequencies, these ferrite beads are designed to function nearly as resistors, leaving signal wave forms undistorted and reducing the possibility of resonance. The nickel barrier construction of the external electrodes enables excellent solder heat resistance. This series of ferrite beads are designed for general *** applications.
Spec
- Quantity：1bag(25pieces)
- Package Type : 0805 (2012M)
- Impedance at 100 MHz : 220Ω
- Current Rating : 900mA
- Type : Chip Ferrite Bead
- Dimensions : 2 x 1.25 x 0.85mm
- Length : 2mm
- Depth : 1.25mm
- Height : 0.85mm
- Maximum DC Resistance : 12mΩ
- CODE No.:724-1488
