63-5014-39 TE Connectivity 50-Way IDC Connector Socket for Cable Mount, 2-Row 1-1658527-4
model:
63-5014-39
brand:
TE Connectivity
Product Description
Product Model: 63-5014-39Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5014-39
Product Brand: TE Connectivity
Features

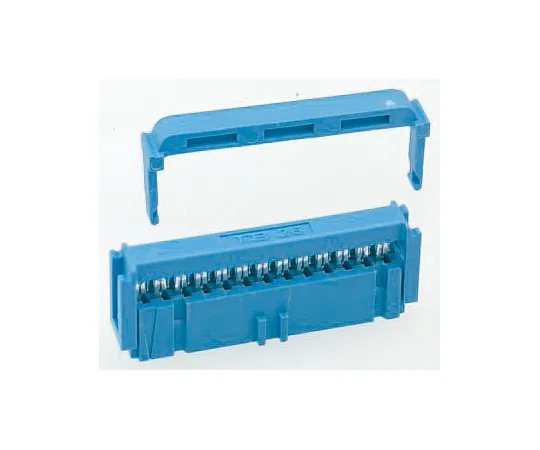

- TE Connectivity AMP-Latch 622 Series 2.54mm IDC Ribbon Cable Socket Connectors. 622 Series 2.54mm IDC ribbon cable connectors with military and centre polarization for *** with 26-28 AWG solid or stranded PVC insulated ribbon cable. These 622 series IDC ribbon cable connectors have UL 94V-0 rated blue glass filled thermoplastic housings, gold plated beryllium copper contacts and are supplied with strain reliefs apart from stock numbers ; 798-1521 798-1521 , ; 680-1180 680-1180 , ; 680-1183 680-1183 , ; 680-1562 680-1562 , ; 718-9018 718-9018 and ; 821-9029 821-9029
Spec
- Quantity：1piece
- Number of Contacts : 50
- Number of Rows : 2
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDC
- Current Rating : 1A
- Contact Plating : Gold over Nickel
- Series : AMP-LATCH 622
- Housing Material : Thermoplastic
- CODE No.:718-9018
