Features

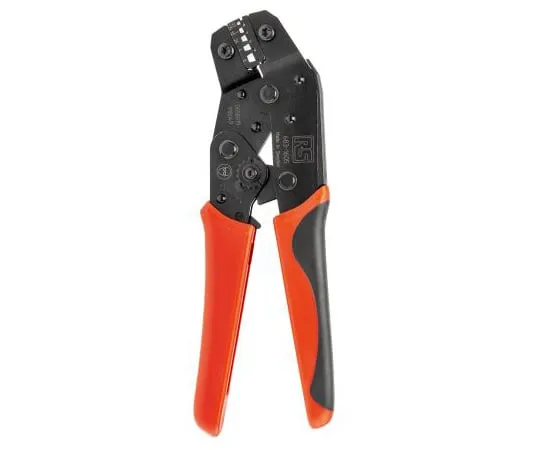

• Hand Crimp Tools for End Splice Terminals. From the trusted RS PRO brand, a range of original line hand crimp tools for both insulated and uninsulated ferrules. The ergonomic ratchet tools produce trapeze crimps, covering a wide range of cables sizes from 0.25 mm² to 50.0 mm². Tools are suitable for both right and left-handed operation. Hand tool ; 683-1605 683-1605 is for crimping ferrules with a wire size range of 0.5 mm² to 6 mm² Hand tool ; 683-1614 683-1614 is for crimping ferrules with a wire size range of 10 mm² to 25 mm² Hand tool ; 683-1617 683-1617 is for crimping ferrules with a wire size range of 35 mm² to 50 mm². Features and Benefits.
• Non-slip main handle and low friction moving handle ensure a comfortable hand grip
• Provides two-hand grip in the final phase of crimping, increasing comfort and productivity
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Ratchet release mechanism to clear mis-crimps and obstructions
• Precision eccentric adjustment for consistent performance and ability to calibrate
• Each tool has a unique serial number for traceability
• Durable: life span exceeds 50000 cycles
• High strength, through hardened alloy Swedish steel construction Typical Applications Crimping tools can be ***d for a variety of applications:- Maintenance ; repair Electrical Installations Cable assemblies How to maintain the product? To maintain a good function and long life: Axles and other movable parts should be regularly lubricated Lubrication* is recomm***ed at least every 10,000 cycles whenever the tool is exposed to dirt or other contaminants Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly *Use a light mineral-free oil The Importance of a High-Quality Crimp When a crimping tool is ***d on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas- tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
