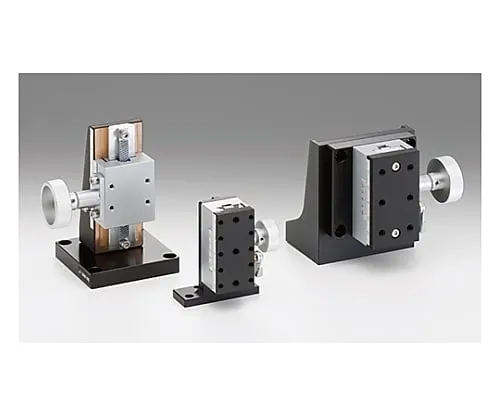

61-6974-34 Z Axis Rack Pinion Stage (Vertical)-Z Bracket Type- Size 34 x 60mm TAR-34603L
Product Description
Product Model: 61-6974-34Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6974-34
Product Brand: SIGMAKOKI CO., LTD.
Features
- This Z-axis rack pinion stage is ideal when you need to move quickly and move a lot.
- The TAR-34603L is a model with an X-axis ant stage attached to a Z bracket.
Spec
- Table surface size: 34 x 60mm
- Movement amount: ±15mm
- Movement amount/1 rotation: Approx 20mm
- Vernier minimum reading: 0.1mm
- Movement guide: Dovetail method
- Main material: Brass bracket: Aluminum
- Surface treatment: Super black chrome, bracket: Black anodic oxide
- Withstand load: 14.7N (1.5kgf)
- Movement accuracy/straightness: 20μm
- Permissible moment load/pitch: 1.4N・m
- Permissible moment load/roll: 1.2N・m
- Moment rigidity/pitch: 0.41″/N・cm
- Squareness: 100μm
- Mass: 0.8kg
- RoHS conform product
