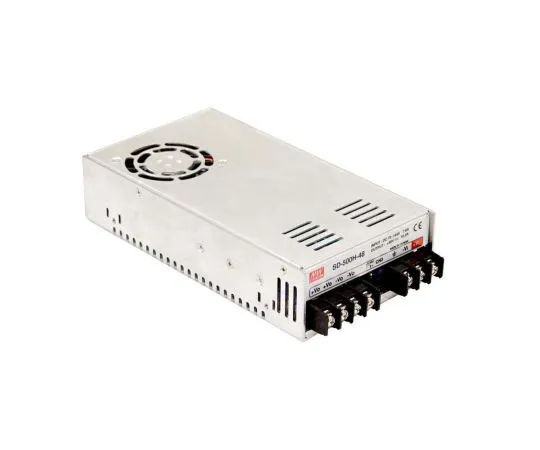

63-4941-79 Mean Well 500W Isolated DC-DC Converter Chassis Mount, Voltage in 72 → 144 V dc, Voltage out 48V dc SD-500H-48
Product Description
Product Model: 63-4941-79Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4941-79
Product Brand: Mean Well
Features
- IEC 60950-1. CB, TUV. De-rating above 50°C (stk no. ; 491-267 491-267 de-rates above 45°C). MTBF to MIL-HDBK-217F (25°C). 3. SD- 500 Series Single Output Enclosed Regulated Isolated DC-DC Converter. High reliability Ultra-wide 4:1 input voltage range Regulated outputs Easy installation - screw terminals Adjustable output voltage EMC meets EN 55022 Class B Forced air cooling by built-in fan Remote ON/OFF control Remote sense LED power-on indicator Short circuit, over-load, over-voltage and over-temperature protection 2kV input / output isolation
Spec
- Quantity：1piece
- Output Voltage : 48V dc
- Output Voltage Adjustment Range : 46 → 60V
- Input Voltage Range : 72 → 144 V dc
- Input Voltage Nominal : 96 V dc
- Isolation Voltage : 2kV ac
- Power Rating : 500W
- Output Current : 10.5A
- Mounting Type : Chassis Mount
- Number of Outputs : 1
- Efficiency : 90%
- Minimum Temperature : -20°C
- Maximum Temperature : +60°C
- Depth : 50mm
- CODE No.:678-3663
