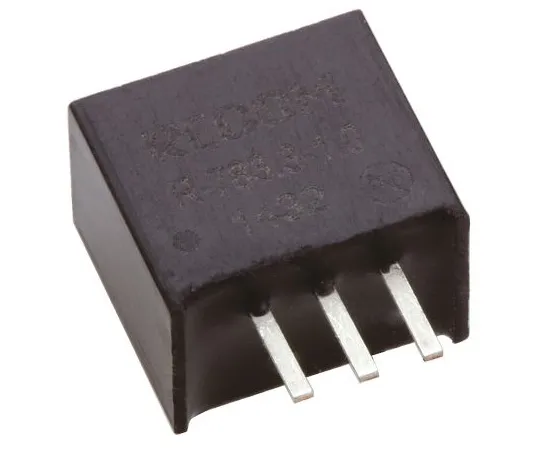

63-4938-22 Recom Switching Regulator, 4.75 → 18V dc Input, 3.3V dc Output, 1A R-783.3-1.0
Product Description
Product Model: 63-4938-22Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-22
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. De-rate above 60°C operating temperature. MTBF to MIL-HDBK 217F. R78xx 1.0 Series. Non-isolated Medical safety approval EN-60601-1-2 No need for heat sinks Pin-out compatible with LM78XX linear regulators High efficiency Low ripple and noise Very low profile Wide input range, 4.75-18V Short circuit protection, thermal shutdown SIP3 package
Spec
- Quantity：1piece
- Input Voltage : 4.75 → 18V dc
- Output Voltage : 3.3V dc
- Number of Outputs : 1
- Output Current : 1A
- Power Rating : 3.3W
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 84%
- MTBF : 13338000h
- Load Regulation : ±0.6%
- Line Regulation : ±0.4%
- Ripple And Noise : 30mV Pk-Pk
- Weight : 1.9g
- CODE No.:672-7120
