Electronic/Electrical Parts and Controll Equipments

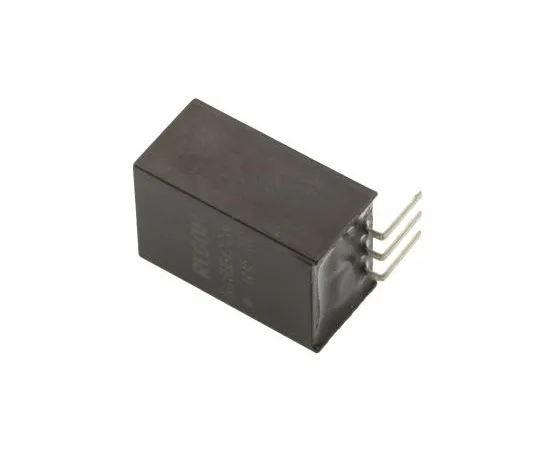

63-4938-20 Recom Switching Regulator, 17 → 72V dc Input, 12V dc Output, 500mA R-78HB12-0.5L
Product Description
Product Model: 63-4938-20Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4938-20
Product Brand: Recom
Features
- EN-55022, EN-55024, EN-60601-1-2, EN-60950-1. De-rate above 71°C operating temperature. MTBF to MIL_HDBK 217F. R-78HBxx-0.5L Series. Non-isolated Medical safety approval EN-60601-1-2 High efficiency switching regulator High voltage input range, up to 72V Thermal shutdown and continuous short circuit protection Low ripple and noise Low profile Pin-out compatible with LM78XX Linear regulators L version with 90° pins
Spec
- Quantity：1piece
- Input Voltage : 17 → 72V dc
- Output Voltage : 12V dc
- Number of Outputs : 1
- Output Current : 500mA
- Power Rating : 6W
- Mounting Type : Through Hole
- Package : SIP
- Minimum Temperature : -40°C
- Maximum Temperature : +85°C
- Efficiency : 89%
- MTBF : 7395000h
- Load Regulation : ±0.6%
- Line Regulation : ±1%
- Ripple And Noise : 20mV Pk-Pk
- Width : 17.5mm
- CODE No.:672-7102
