Features

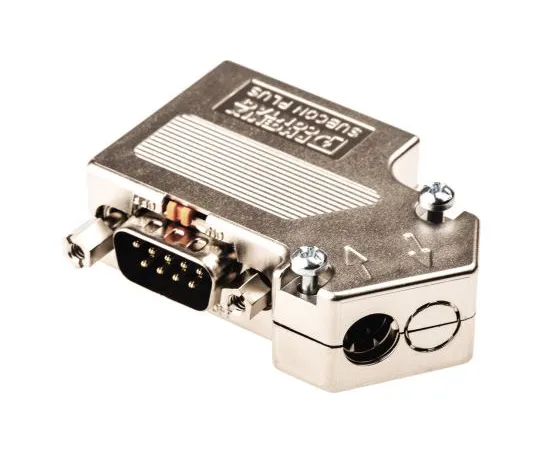

• Phoenix Contact SUBCON-PLUS-CAN D-Sub Connectors. SUBCON-PLUS-CAN 9 pin D-sub socket connectors designed for *** in CAN systems up to 1 MBit/s (CAN, CANopen, SafetyBus-P) allowing fast connection of incoming and outgoing bus cables under field conditions. These SUBCON-PLUS-CAN d-sub connectors have a 120 Ohm integrated terminating resistor which can be activated externally by a slide switch, segment by segment startup, a shielded ABS housing, screw connections and can all be ***d with bus cables as per the CiA Draft Recomm***ation 303-1 with an outside diameter of 8mm. Stock numbers ; 801-9119 801-9119 , and ; 648-3518 648-3518 have two 35° angled cable entries and an internal connection unit which can be turned around enabling cable insertion from the left or the right. Stock number ; 648-3518 648-3518 has a second d-sub connection for connecting a programming device. These all accept a cable cross section of 7.6mm to 8.4mm. Stock number ; 648-3495 648-3495 has a 35° angled cable entry and can accept a variable cable diameter range of 6 to 10mm. Stock number ; 648-3502 648-3502 has a 180° axial cable entry and two cable entries For suitable screwdriver see stock number ; 390-9663 390-9663
