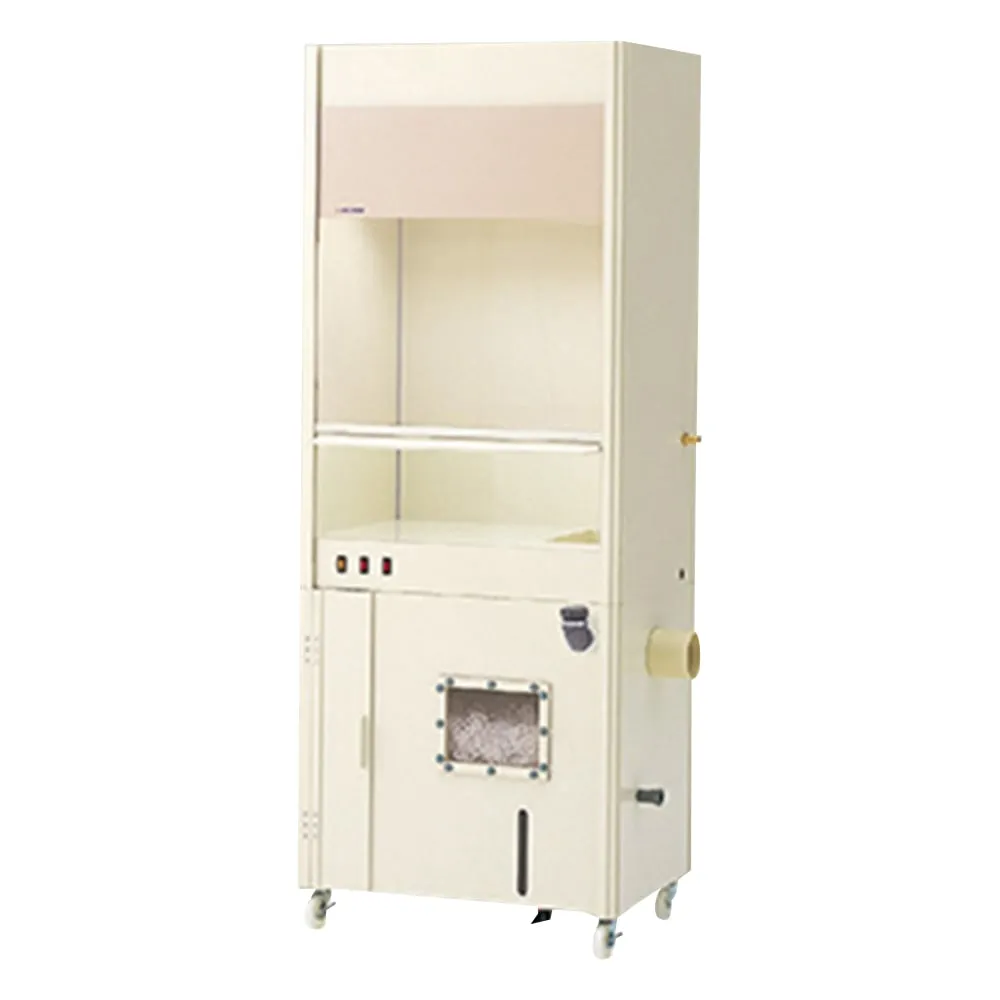

3-5332-31 Compact Draft 700P (PVC/Wet Scrubber Integrated Type) with Water Supply and Drainage and Acid Resistant Fan CD7P-W-L
Product Description
Product Model: 3-5332-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-5332-31
Product Brand: AS ONE Corporation
Features
- Compact draft incorporating wet exhaust gas treatment equipment.
- Has excellent acid resistance and is suitable for acid gas treatment.
- The door is a balance weight system, and the vertical direction can be stopped at any position.
- Equipped with a slide damper in the draft, exhaust air volume can be adjusted.
- LED lighting is ***d to save power.
Spec
- Fan Specification: Acid-Resistant Fan
- Plumbing: Yes
- Material: Body/Scrubber/Exhaust Fan/PVC, Door/Transparent PVC
- External Dimensions: 700 x 600 x 1800 (2090 when Door is Fully Open) mm
- Effective Inner Dimensions: 688 x 485 x 700 mm
- Sash Opening: 620 x 615 mm
- Workplane Equal Load Capacity: 20 kg
- Interior Lighting: LED Lamp (7W) x 1
- Air flow: Approx. 4m3/min(Door 1/3 Open, Surface Speed 0.5 m/s, No Load) * May vary dep***ing on the work environment
- Operating noise: Approx. 65dB
- Power: 100 VAC 50/60Hz 15 A
- Power Cord Length: 2.5 m (3P Plug)
- Weight: Approx. 63 kg
- Water Supply Connection Port: Rc1/2 (Outer Diameter Φ16 mm, Bamboo Shoot Included)
- Drain: 13 A Pipe Stop < Scrubber Part >
- Cleaning Tower Filling Material: Summit Ring Material/PP
- Washing Water Tank: Material/PVC, Tank Capacity/Approx. 45 L, Liquid Amount (MAX)/Approx. 35 L
- Water Supply Connection Port: Rp1/2 Water Supply Socket Stopped
- Drain cock: Φ16 mm bamboo shoots * Automatic water supply mechanism by ball tap and overflow mechanism are not attached.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
