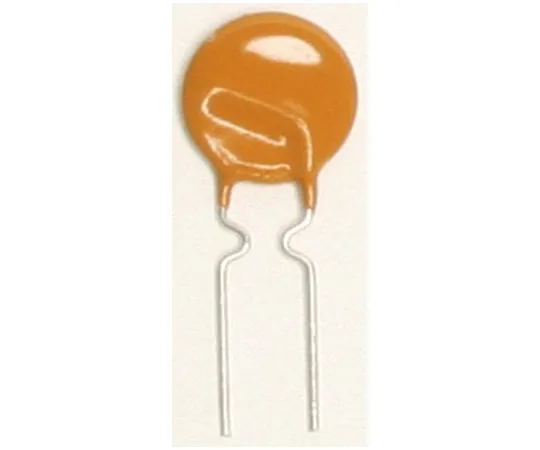

63-4906-46 Board Mounted with Lead Wire, Resettable F*** Nidec 1.35 A (Operating Current 2.7 A) 1 Bag (5 Pieces) PRCP-R135-0-99
model:
63-4906-46
brand:
Copal Electronics
Product Description
Product Model: 63-4906-46Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4906-46
Product Brand: Copal Electronics
Features
- Resettable f*** terminal insertion type
- Terminal insertion type with fast break characteristics
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Lead Direction: Radial
- Operating current: 2.7 A
- Operating time: 7.3 s
- Holding current: 1.35 A
- Rated voltage: 30 V
- Current mAx: 40 A
- Minimum resistance: 0.065 Ω
- Maximum resistance: 170 mΩ
- Power Loss: 0.8 W
- Body Height: 18.9 mm
- Body Length: 8.9 mm
- Body Width: 3 mm
- Wire pitch: 5.1 mm
- Wire Length: 7.6 mm
- Wire Diameter: 0.51 mm
- RoHS Compliance Status: Compliance
- Securities Code: 637-6426
