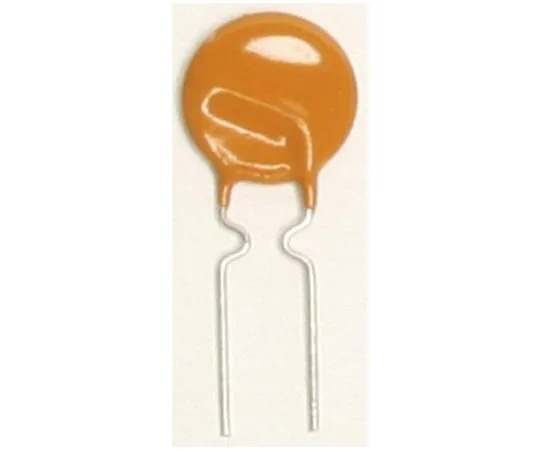

63-4906-40 Board Mounted with Lead Wire, Resettable F***, Nidec 0.5 A (Operating Current 1 A), 1 Bag (10 Pieces) PRCP-R050-0-99
model:
63-4906-40
brand:
Copal Electronics
Product Description
Product Model: 63-4906-40Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4906-40
Product Brand: Copal Electronics
Features
- Resettable f*** terminal insertion type
- Terminal insertion type with fast break characteristics
Spec
- Number of Pieces: 1 Bag (10 Pieces)
- Lead Direction: Radial
- Operating current: 1A
- Operating time: 4s
- Holding current: 0.5 A
- Rated voltage: 60 V
- Current mAx: 40 A
- Minimum resistance: 0.41 Ω
- Maximum resistance: 1.17 Ω
- Power Loss: 0.75 W
- Body Height: 13.7 mm
- Body Length: 7.9 mm
- Body Width: 3.1 mm
- Wire pitch: 5.1 mm
- Wire Length: 7.6 mm
- Operating temperature mAx: +85°C
- RoHS Compliance Status: Compliance
- Securities Code: 637-6369
