Electronic/Electrical Parts and Controll Equipments

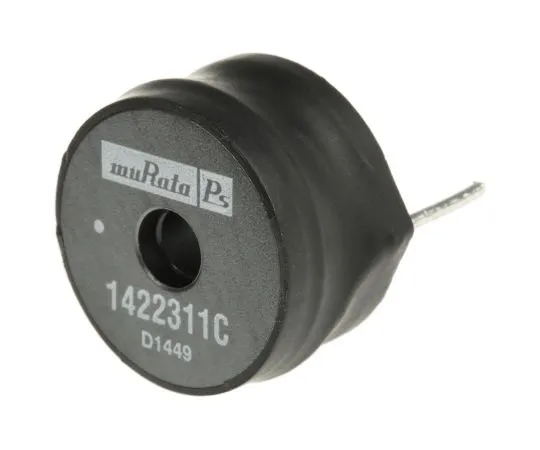

63-4899-17 Murata 22 μH ±10% Bobbin Inductor, Max SRF:9.3MHz, Q:64, 11A Idc, 11mΩ Rdc 1400 1422311C
model:
63-4899-17
brand:
Murata Power Solutions
Product Description
Product Model: 63-4899-17Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-4899-17
Product Brand: Murata Power Solutions
Features
- Murata 1400 Series High Current Radial Inductors. Designed for *** in power line applications such as switching regulators, filters and suppression circuits Constructed from high saturation flux density material enabling *** in high current applications Suitable for PCB or chassis mounting using a non-magnetic fastener via the central fixing hole Terminated with easy-strip pre-tinned enamelled copper leads Lead length 10mm Operating temperature: -40 → +85°C Inductance Tolerance: ±10%
Spec
- Quantity：1piece
- Inductance : 22 μH
- Maximum DC Current : 11A
- Mounting Type : Radial
- Maximum DC Resistance : 11mΩ
- Tolerance : ±10%
- Length : 28.5mm
- Depth : 25.9mm
- Height : 15.5mm
- Dimensions : 28.5 x 25.9 x 15.5mm
- Maximum Self Resonant Frequency : 9.3MHz
- Lead Pitch : 23.9mm
- Series : 1400
- Minimum Quality Factor : 64
- CODE No.:629-9206
