Features

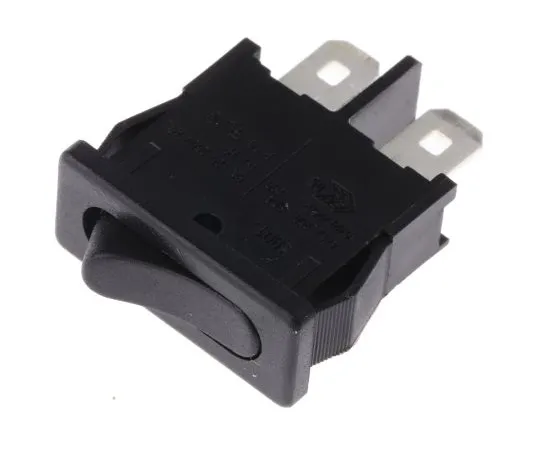

• UL; CSA; ENEC. Stock number ; 607-7545 607-7545 switch fascia size is 21x9.5mm, behind panel depth 22.5mm. Stock number ; 607-7551 607-7551 switch fascia size is 25x9.5mm, behind panel depth 22.5mm. Stock number ; 607-7567 607-7567 switch fascia size is 31.5x9.5mm, behind panel depth 22.5mm. The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings. Marquardt 1900 Series Rocker Switches. Marquardt 1900 series single pole rocker switches. The 1900 rocker switches are suitable for *** in Class II appliances and are available in a choice of three different attractive slimline profiles. The rocker switch body has a silk matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit. The 1900 rocker switches have silver contacts with a SPST (on-off) switching format, a contact resistance ;100mΩ and an insulation resistance of >100MΩ. Electrical connection is made via the 4.8mm Faston/Quick Connect style tab terminals. Slim profile High current rating, up to 6A High inrush current (capacitive) up to 50A Contact distance ≥3mm Operating force 2 to 5N Electrical connection via 4.8mm Faston/Quick Connect style tab terminals UL 94 V-2 flammability rated
