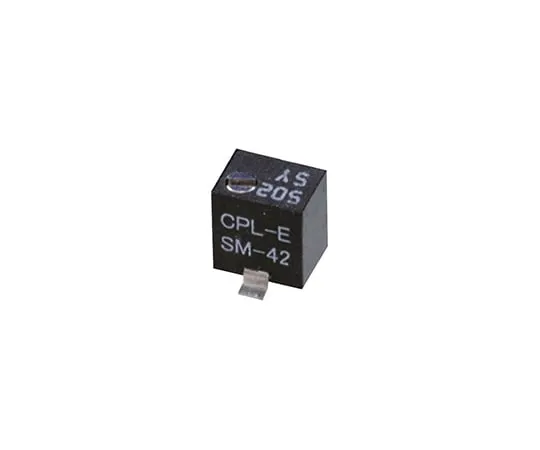

63-4880-76 Semi-Fixed Resistor 2 kΩ 0.25 W 1 Bag (5 Pieces) SM-42X2kOhm
model:
63-4880-76
brand:
Copal Electronics
Product Description
Product Model: 63-4880-76Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4880-76
Product Brand: Copal Electronics
Features
- Cermet Trimmer SM-42 Series (11 Rotation Type)
- Multi-rotation trimmer (11 rotations) Fine adjustment. Can be soldered by solder reflow. Sealed structure and washable. Lead-free, cadmium-free.
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 2 kΩ
- Mounting type: surface mount
- Speed: 11
- bearing: top adjustment
- Rated power: 0.25 W
- Series: SM-42
- *** styles: gulling
- Tolerance: +/- 10%
- Temperature coefficient: +/- 100ppm/deg. C
- Shaft Diameter: 1.5 mm
- Operating temperature Min: -65°C
- Operating temperature mAx: +150°C
- RoHS Compliance Status: Compliance
- Securities Code: 602-5011
