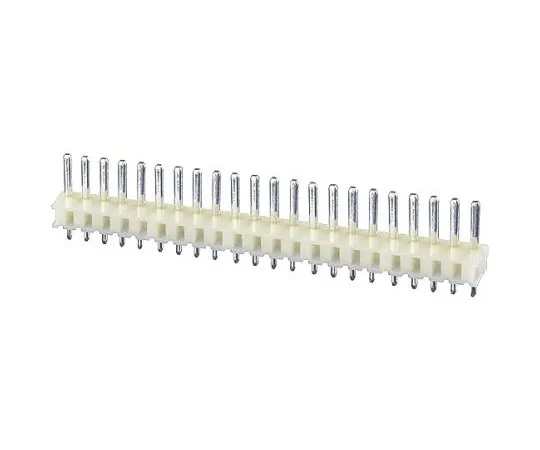

63-4875-56 JST NH, 22 Way, 1 Row, Straight PCB Header B22P-SHF-1AA (LF)(SN)
Product Description
Product Model: 63-4875-56Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4875-56
Product Brand: JST
Features
- JST NH series 2.5mm Through Hole PCB Headers. A range of 2.5mm pitch through hole PCB headers for *** with the JST HVQ and NH series of wire-to-board connectors. These single-row headers are available with from 2 to 25 ways in both straight and right-angle styles. Voltage rating: 250V ac/dc Current rating: 3A Initial contact resistance: ; 10mΩ UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Spec
- Quantity：1bag(10pieces)
- Series : NH
- Pitch : 2.5mm
- Number of Contacts : 22
- Number of Rows : 1
- Body Orientation : Straight
- Shrouded/Unshrouded : Unshrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Contact Plating : Tin
- Current Rating : 3A
- CODE No.:546-8524
