Electronic/Electrical Parts and Controll Equipments

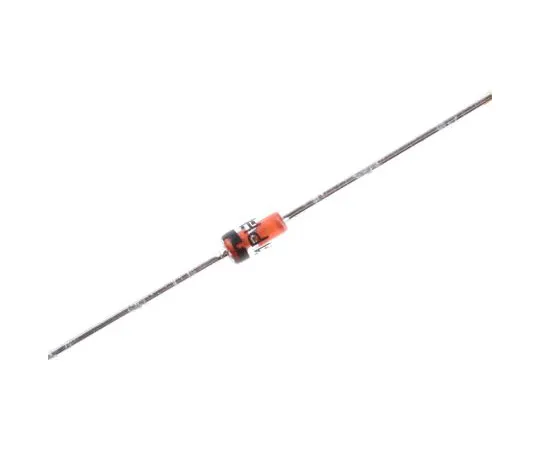

63-4870-90 Nexperia, 9.1V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35 BZX79-C9V1,113
Product Description
Product Model: 63-4870-90Product Brand: Nexperia Featur […]
Contact Us
Product Details
Product Model: 63-4870-90
Product Brand: Nexperia
Features
- Zener Diodes, NXP
Spec
- Quantity：1bag(20pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Maximum Power Dissipation : 500 mW
- Package Type : DO-35
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 5mA
- Maximum Zener Impedance : 15Ω
- Maximum Reverse Leakage Current : 500nA
- Length : 4.25mm
- Dimensions : 4.25 x 1.85 x 1.85mm
- Width : 1.85mm
- CODE No.:544-4455
