Features

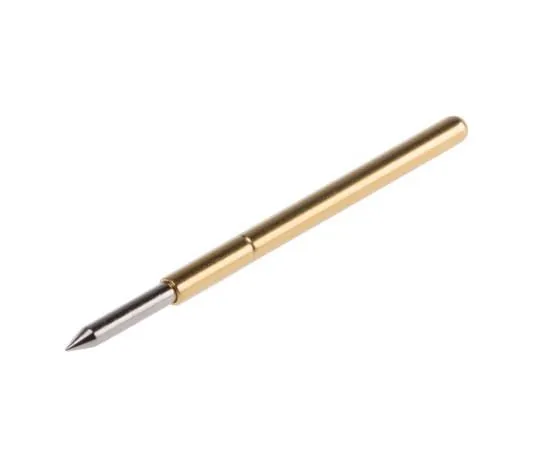

• RS Pro Spring Probe with Needle Point Head. Brought to you under the trusted RS Pro Brand, this flat head spring spade terminal probe is designed to be ***d with an appropriate receptacle, which is ordered separately. Having the probe separate from the receptacle allows easy replacement of damaged spring test probes without disturbing the wiring. The probe is suited ideally (in development and production) for automatic test equipment (ATE) and test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. Receptacles can be push fitted into the mounting plate to provide an airtight seal without the *** of adhesives. The needle head is ideal for test lands, pads, leads and holes. Penetrates oxides and fluxes as well as contaminated boards. Features and Benefits. Contact Resistance of 50mΩ Current Rating of 3A Gold Plated Spring Pressure of 1.47 N(g)
