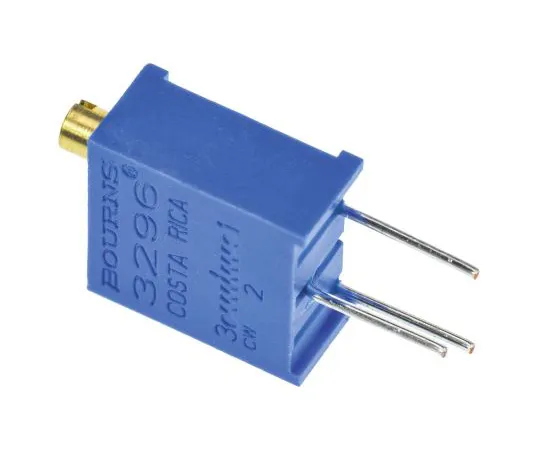

63-4850-87 5kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3296 Series 3296Y-1-502LF
Electronic/Electrical Parts and Controll Equipments

63-4850-87 5kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3296 Series 3296Y-1-502LF

model: 63-4850-87
brand: Bourns

Product Description

Product Model: 63-4850-87Product Brand: Bourns Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4850-87
Product Brand: Bourns

Features

  • Top Adjust 3296Y Series. Slim body profile - higher packing density Sealed to withstand immersion board washing Moulded body with built-in stand-offs Large screw slot for easier adjustment Wiper idles at *** travel Slim body profile-higher packing density Sealed to withstand immersion board washing Flame retardant plastic housing Double chevron shaft seal Moulded body with built in stand offs IC style pins for PCB assembly Precious metal wiper for set point stability

Spec

  • Quantity:1piece
  • Maximum Resistance : 5kΩ
  • Mounting Type : Through Hole
  • Number of Turns : 25
  • Orientation : Top Adjust
  • Power Rating : 0.5W
  • Series : 3296
  • Termination Style : Pin
  • Tolerance : ±10%
  • Temperature Coefficient : ±100ppm/°C
  • Length : 9.53mm
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +125°C
  • CODE No.:522-0215
