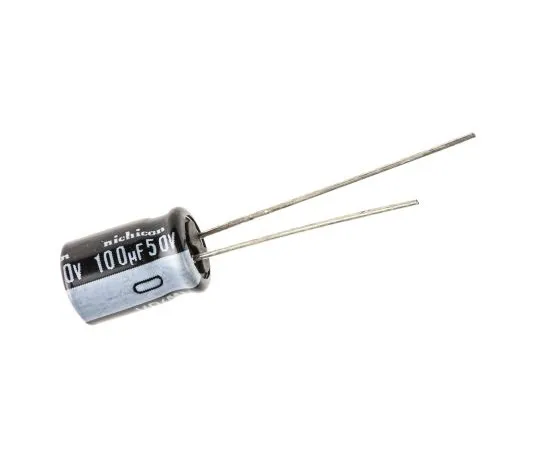

63-4847-62 Nichicon 100μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +85°C 8mm 3.5mm UVR1H101MPD
Product Description
Product Model: 63-4847-62Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-4847-62
Product Brand: NICHICON
Features
- Nichicon VR Series General Purpose Electrolytic Capacitors. Nichicon VR Series Aluminium Electrolytic Capacitors are high reliability capacitors which have a rated life up to 2000 hours. The VR series capacitors offer a high temperature range, high voltage, low impedance and high ripple current. Features ; Benefits:. High reliability High ripple current Long life up to 2000 hours Lead free reflow soldering Capacitance values up to 33000 μF
Spec
- Quantity：1bag(25pieces)
- Capacitance : 100µF
- Voltage : 50V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 8 (Dia.) x 11.5mm
- Height : 11.5mm
- Minimum Operating Temperature : -40°C
- Diameter : 8mm
- Maximum Operating Temperature : +85°C
- Lead Pitch : 3.5mm
- Series : VR
- Leakage Current : 3 μA, 4 μA
- CODE No.:520-0996
