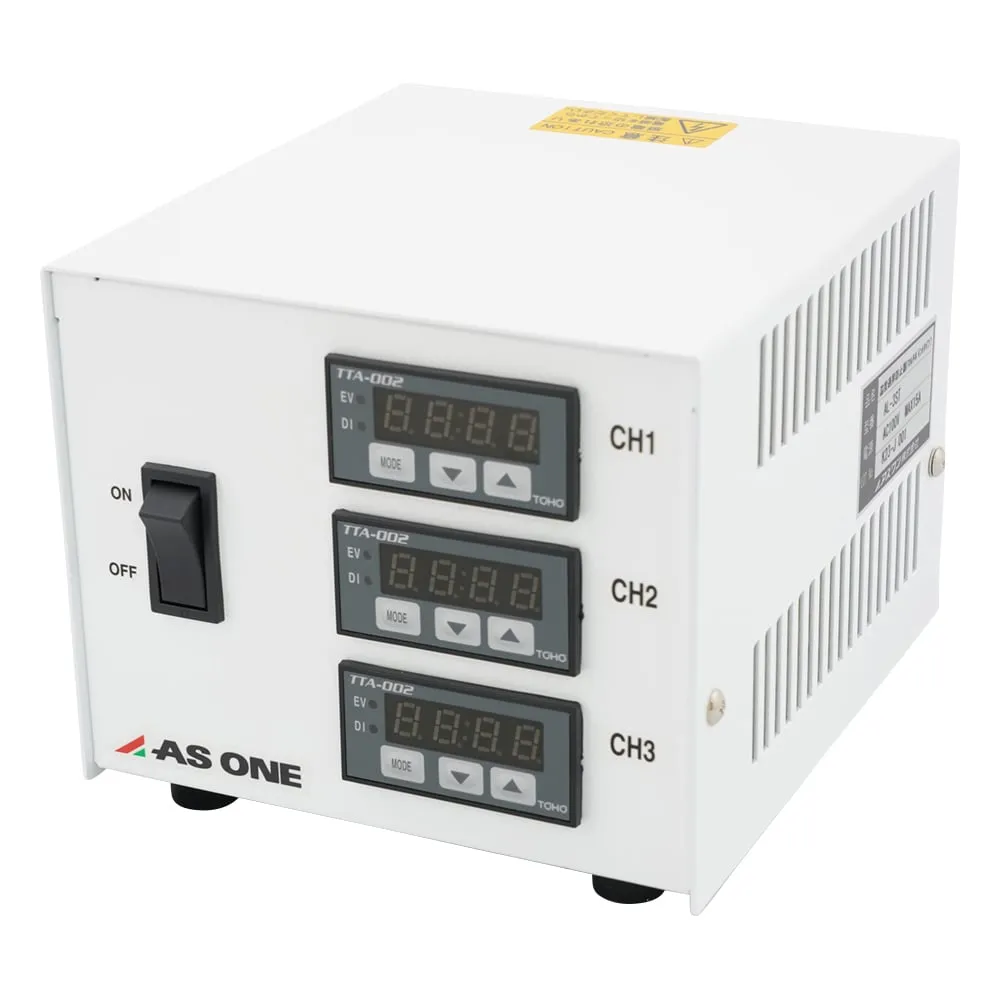

4-3758-01 OverTemperature Protection (multi-point Type) AL-3ST
Product Description
Product Model: 4-3758-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-3758-01
Product Brand: AS ONE Corporation
Features
- It is a simple overclimb prevention device.
- The current temperature and the overtemperature setting are alternately displayed.
- One device can connect three sensors.
- If one sensor fails (over the overtemperature setting), the output stops.
- The three sensors can be set indep***ently.
Spec
- Size (mm): 130 x 169 x 111
- Weight (kg): 1.2
- Number of pieces: 1
- Temperature setting range: -100 to + 1000 degrees C
- Sensor: K thermocouple
- Labeling system: +/- (0.5% + 1 digit) of the indicated value or +/- 3 degrees C, whichever is greater
- Power supply: 100 VAC 50/60 Hz
- Capacity: MAX 15 A
- Safety device: 20 A f***
- Power cord: approx. 2 m (3P plug)
- Output control method: Relay contact output
- Connection terminal: M 3.5 terminal block
- *It doesn't come with a sensor. Please prepare it separately.
