Electronic/Electrical Parts and Controll Equipments

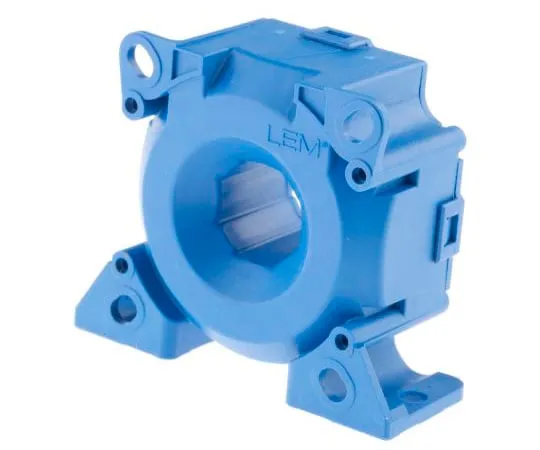

63-4797-28 LEM LF Series Closed Loop Current Sensor, 0 → 420A nominal current, 100mArms output current LF 205S
Product Description
Product Model: 63-4797-28Product Brand: LEM Features LF […]
Contact Us
Product Details
Product Model: 63-4797-28
Product Brand: LEM
Features
- LF - S Series. Current transducers LF-S Series for the electronic measurement of currents: dc, ac, pulsed.., with galvanic separation between the primary circuit and the secondary circuit. They are speciallly designed for industrial applications. Measurement of ac, dc and pulsed currents High Accuracy - Closed Loop High Noise Immunity Low Temperature Drift Current Overload Capability Optimised response time Wide Frequency Bandwidth Multiple Mounting Options Body material plastic to UL94-V0 Operating temperature range -10 → +70°C
Spec
- Quantity：1piece
- Sensor Technology : Closed Loop
- Nominal Current : 0 → 420A
- Supply Voltage : 12 → 15 V
- Sensor Type : Hall Effect
- Mounting Type : Panel Mount
- Frequency Bandwidth : DC to 100 kHz
- Bore Size : 15.6mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Depth : 26.19mm
- Height : 51.63mm
- Width : 61mm
- CODE No.:451-1352
