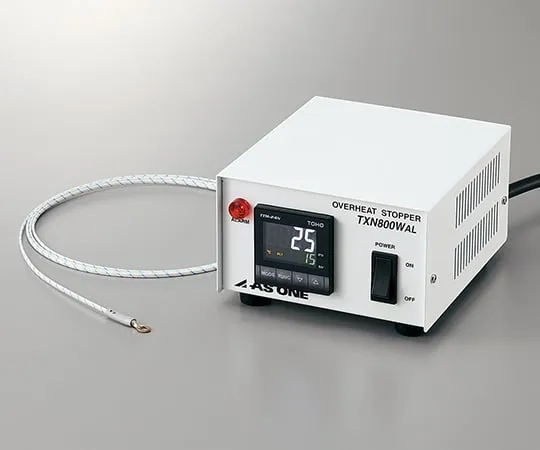

3-6824-01-57 Temperature Excess Temperature Rise Preventer (with output for alert) Main Unit with Chinese Calibration Certificate TXN800WAL
Product Description
Product Model: 3-6824-01-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6824-01-57
Product Brand: AS ONE Corporation
Spec
- Specifications: 130 x 160 x 84 mm
- Power supply: 100 VAC 50/60 Hz
- Capacity: AC 100 VmAX 15 A (includes alert output)
- Output for alerts: 100 VmAX 1 A
- Temperature control method: Main control ON/OFF
- Output control method: Relay contact output
- Safety features: 15 A f***
- Power cord: About 1.8 m (3 P plug)
- Weight: approximately 1.5 kg
- Temperature display accuracy: +/- 2 degrees C or the indicated value +/- (0.3% + 1 digit), whichever is greater
- Sensor Type: K Thermocouple
- Setting temperature: -100 to + 1000 degrees C
- Setting method: UP/DOWN keys
- Connection terminal: control output/3 P outlet, alarm output/sensor input/M 3.5 Y terminal block
- Accessories: K Thermocouple round terminal specification (180 degrees Celsius), Cable length: approx. 2 m
- *We have a demo unit.
- *The included K Thermocouple sensor is standard type. Prepare a sensor for high temperature separately.
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
