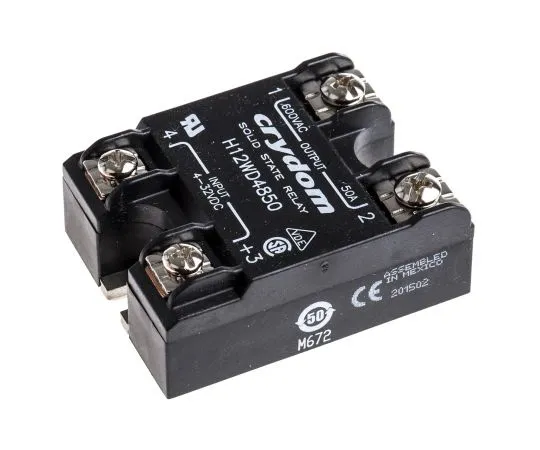

63-4754-31 Sensata / Crydom 50 A Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V Maximum Load H12WD4850
model:
63-4754-31
brand:
Sensata / Crydom
Product Description
Product Model: 63-4754-31Product Brand: Sensata / Crydo […]
Contact Us
Product Details
Product Model: 63-4754-31
Product Brand: Sensata / Crydom
Features
- UL; CSA; VDE. Derating will limit the maximum load current at temperatures above 25 °C. Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet. H12 50-90A, 480Vac, ac O/P SSRs. SCR output AC loads to 90Amps Load voltages up to 660Vac Zero-voltage switching Dimensions: H22.9 x W45.7 x D58.4mm Terminal Type Screw; Saddle Clamp 8pF Input-Output Capacitance
Spec
- Quantity：1piece
- Minimum Load Current : 150 mA
- Maximum Load Current : 50 A
- Mounting Type : Panel Mount
- Maximum Load Voltage : 660 V
- Minimum Control Voltage : 4 V
- Maximum Control Voltage : 32 V
- Switching Type : Zero Cross
- Output Device : SCR
- Maximum Turn On Time : 1/2 cycle
- Dimensions : 58.4 x 45.7 x 22.9mm
- Off State Leakage Current : 1 mA
- CODE No.:291-2359
